Reverse ST ST72F32AJ1 Microcontroller Flash Memory Binary

Reverse ST ST72F32AJ1 Microcontroller Flash Memory Binary needs to crack secured mcu st72f32aj1 flash memory fuse bit over the protection and copy embedded firmware from st72f32aj1 microprocessor;

Reverse ST ST72F32AJ1 Microcontroller Flash Memory Binary needs to crack secured mcu st72f32aj1 flash memory fuse bit over the protection and copy embedded firmware from st72f32aj1 microprocessor

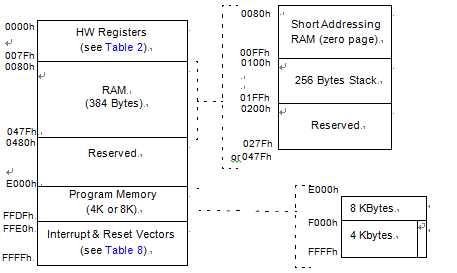

As shown in below Figure, the MCU is capable of ad- dressing 64K bytes of memories and I/O registers. The available memory locations consist of 128 bytes of register locations, up to 384 bytes of RAM and up to 8 Kbytes of user program memory by breaking st32f32ak1 mcu flash memory protection. The RAM space includes up to 256 bytes for the stack from 0100h to 01FFh.

Break ST ST72F32AJ1 MICROCOMPUTER’s protection over the fuse bit and readout firmware from flash memory

The highest address bytes contain the user reset and interrupt vectors.

IMPORTANT: Memory locations marked as “Re- served” must never be accessed. Accessing a re- served area can have unpredictable effects on the device.

ST ST72F32AJ1 Microcontroller Flash Memory map

The contents of the I/O port DR registers are readable only in output configuration. In input configura- tion, the values of the I/O pins are returned instead of the DR register contents. The bits associated with unavailable pins must always keep their reset value.
