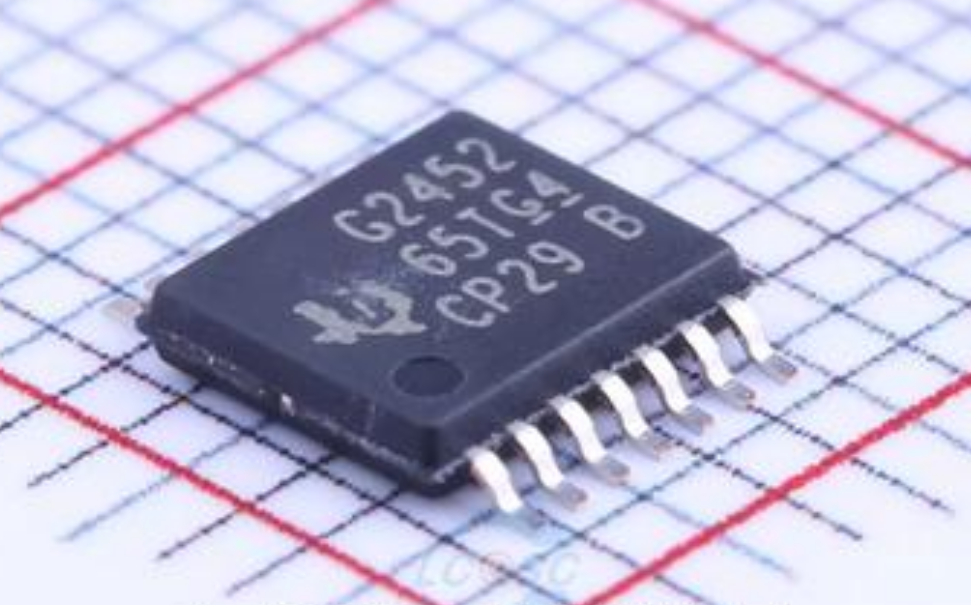

Locked Microcontroller MSP430G2452 Flash Memory Breaking is a process to crack secured msp430g2452 protective fuse bit by focus ion beam and then extract flash memory program from mcu msp430g2452;

FEATURES of MSP430G2402 can help us find a proper way to Decipher Texas Instruments MCU MSP430G2402:

Low Supply Voltage Range: 1.8 V to 3.6 V

Ultra-Low Power Consumption

– Active Mode: 220 µA at 1 MHz, 2.2 V

– Standby Mode: 0.5 µA

– Off Mode (RAM Retention): 0.1 µA

Five Power-Saving Modes

Ultra-Fast Wake-Up From Standby Mode in

Less Than 1 µs

16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time

Basic Clock Module Configurations

– Internal Frequencies up to 16 MHz With

Four Calibrated Frequencies

– Internal Very-Low-Power Low-Frequency

(LF) Oscillator

– 32-kHz Crystal

– External Digital Clock Source

One 16-Bit Timer_A With Three

Capture/Compare Registers

Up to 16 Touch-Sense Enabled I/O

Universal Serial Interface (USI) Supporting SPI and I2C

10-Bit 200-ksps Analog-to-Digital (A/D)

Converter With Internal Reference,

Sample-and-Hold, and Autoscan

(MSP430G2x32 Only)

Brownout Detector

Serial Onboard Programming,

No External Programming Voltage Needed,

Programmable Code Protection by Security Fuse which can be removed by break msp430g2412 flash memory

On-Chip Emulation Logic With Spy-Bi-Wire Interface

Family Members are Summarized in Table 1

Package Options

– TSSOP: 14 Pin, 20 Pin

– PDIP: 20 Pin

– QFN: 16 Pin

For Complete Module Descriptions, See the

MSP430x2xx Family User’s Guide (SLAU144)
