In the fast-moving world of embedded systems, accessing and analyzing firmware stored within microcontrollers is often essential for maintenance, debugging, legacy system recovery, or competitive analysis. One of the most frequently encountered chips in various industrial and consumer applications is the ATmega8L, a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. Many times, developers, engineers, or researchers need to copy IC ATmega8L heximal content to clone, replicate, or restore a program, especially when original source code is unavailable or the chip is protected by security fuses.

At [Your Company Name], we specialize in helping clients break, read out, and decode secured ATmega8L memory, offering reliable solutions to duplicate or unlock protected firmware for legal and technical purposes.

Copy IC Atmega8L Heximal from MCU ATmega8L flash memory, crack MCU ATmega8L protective system and disable its security fuse bit, the status of Microcontroller ATmega8L will be modified from locked to unlocked one;

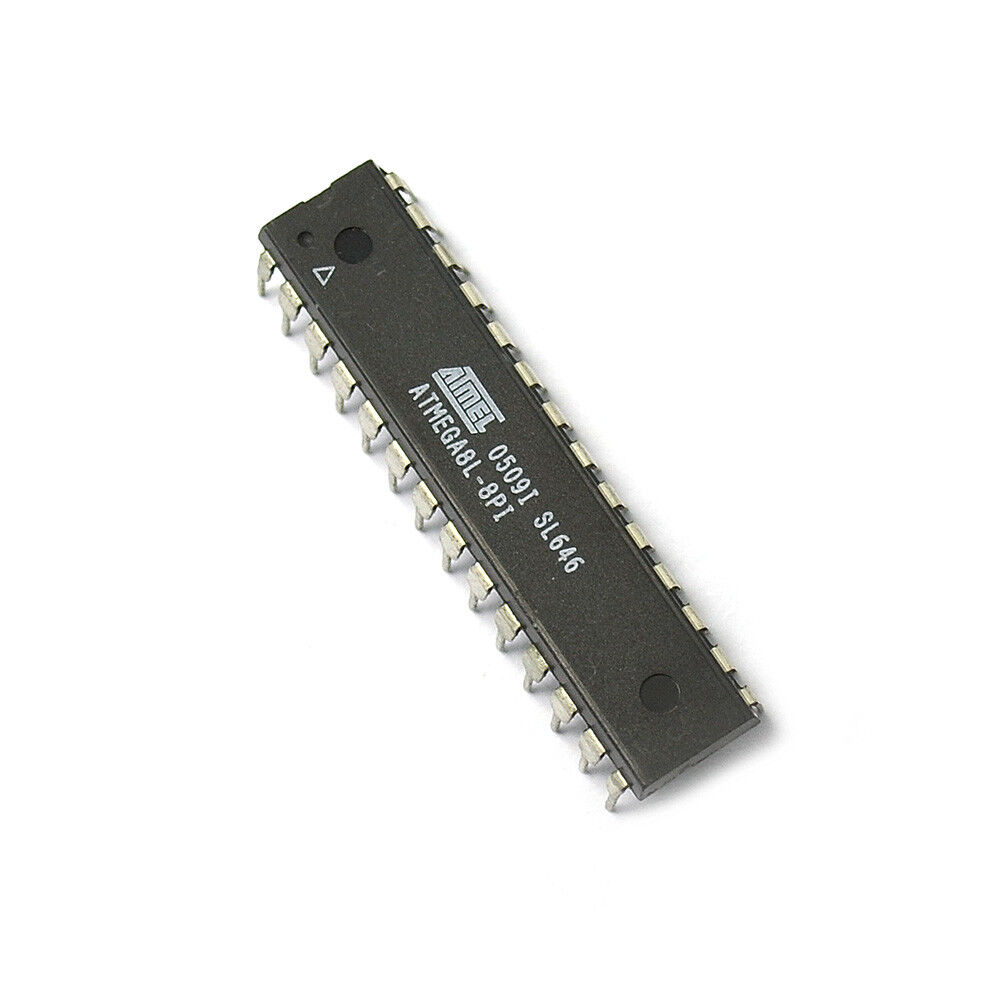

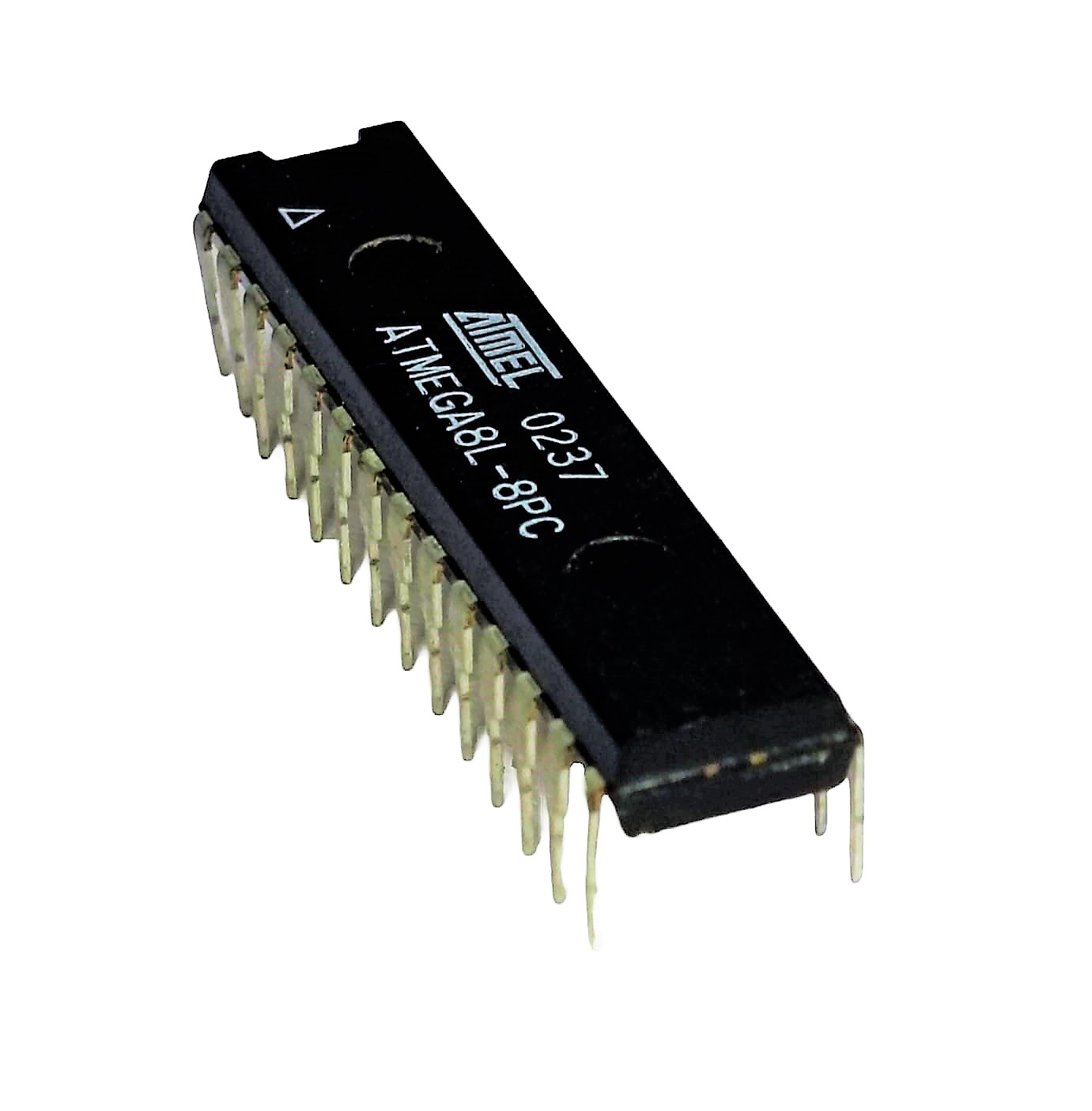

High-performance, Low-power AVR 8-bit Microcontroller

· Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier



High Endurance Non-volatile Memory segments

– 8K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Byte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM (1)(3)

– Data retention: 20 years at 85°C/100 years at 25°C (2)(3)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program True Read-While-Write Operation

– Programming Lock for Software Security



Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

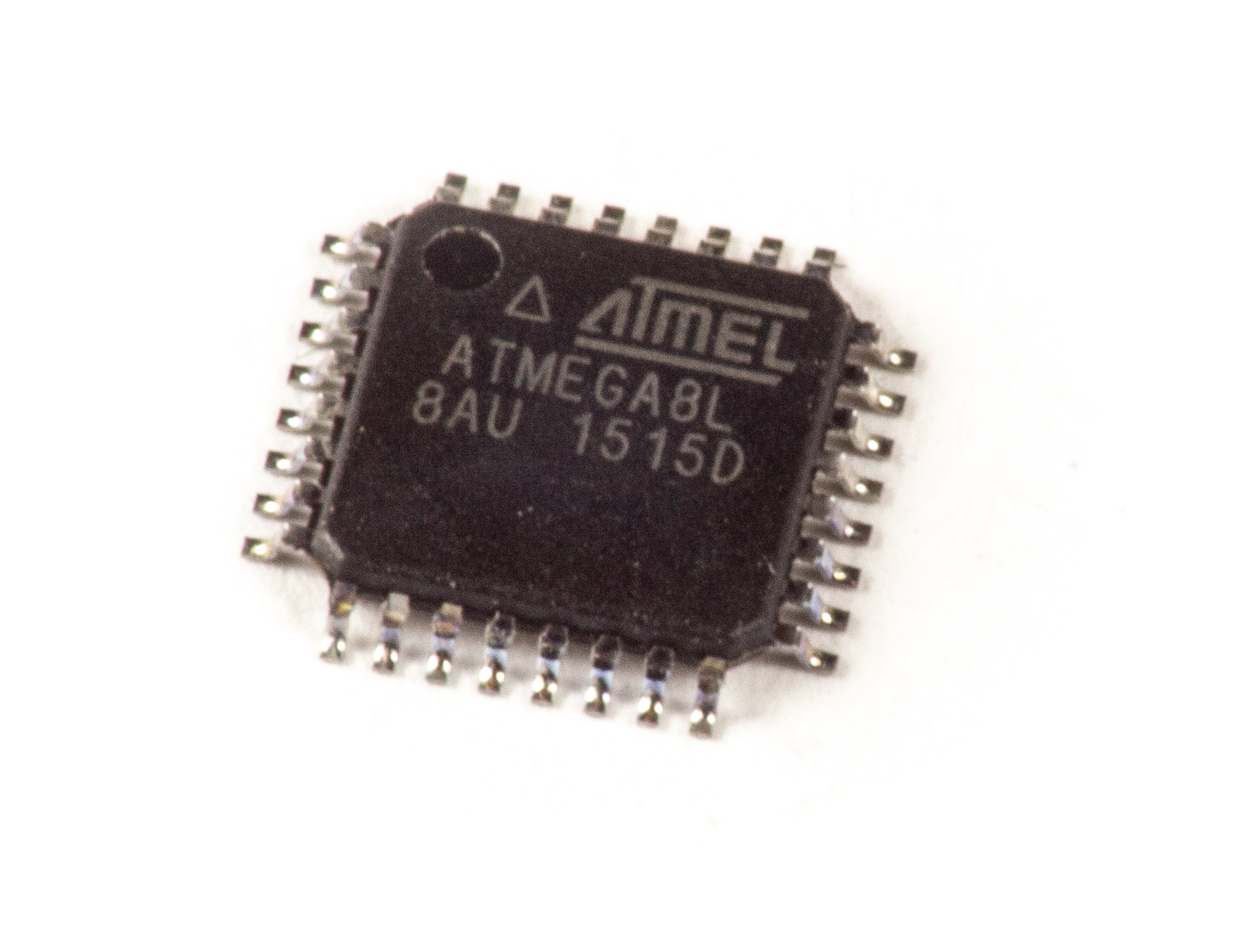

– 8-channel ADC in TQFP and QFN/MLF package

Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package

Six Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF Operating Voltages

– 2.7 – 5.5V (ATmega8L)

– 4.5 – 5.5V (ATmega8) Speed Grades

– 0 – 8 MHz (ATmega8L)

– 0 – 16 MHz (ATmega8)

Power Consumption at 4 Mhz, 3V, 25°C

– Active: 3.6 mA

– Idle Mode: 1.0 mA

– Power-down Mode: 0.5 µA
