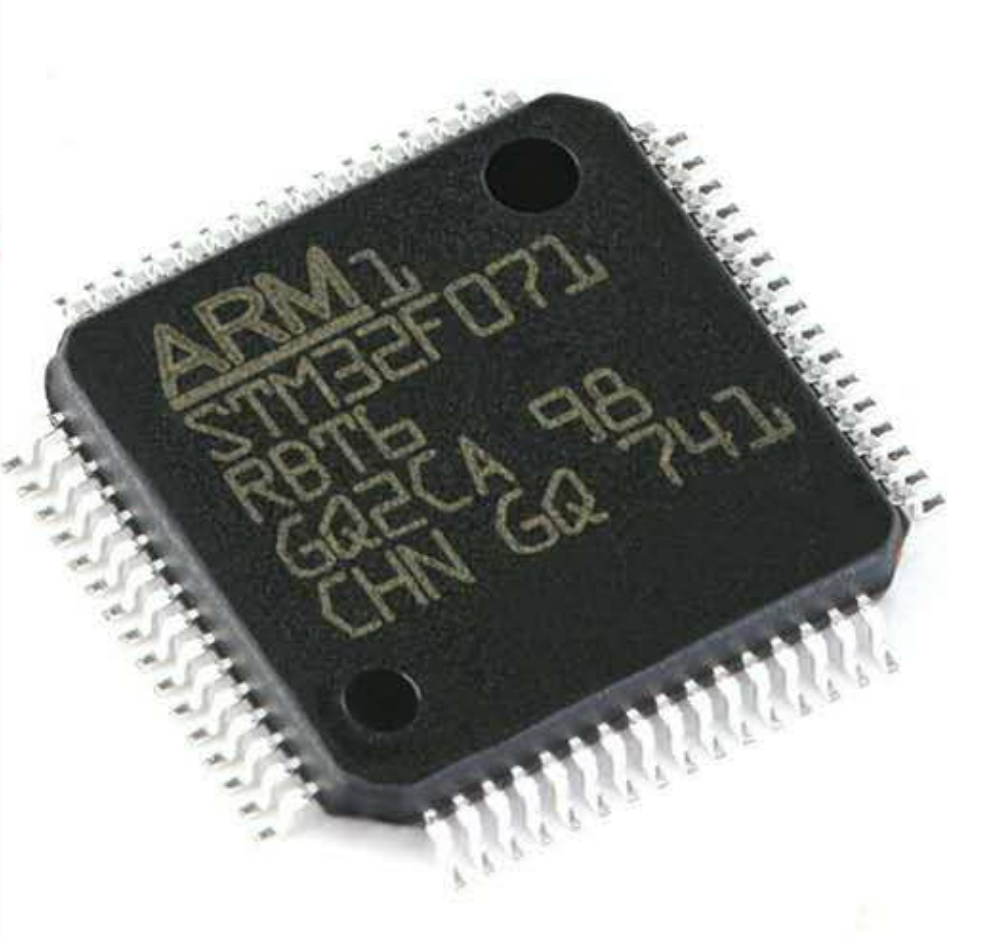

Break ARM STM32F071R8 Microcontroller Flash Memory protection and readout embedded heximal file from mcu stm32f071rb chip, then tamper resistance system of microprocessor stm32f071rb will be unlocked;
The current consumption is a function of several parameters and factors such as the operating voltage, ambient temperature, I/O pin loading, device software configuration, operating frequencies, I/O pin switching rate, program location in memory and executed binary code.
The current consumption is measured as described in Figure 13: Current consumption measurement scheme. All Run-mode current consumption measurements given in this section are performed with a reduced code that gives a consumption equivalent to CoreMark code after recover stm32f071c8 locked mcu flash memory content.
The MCU is placed under the following conditions:
- All I/O pins are in analog input mode
- All peripherals are disabled except when explicitly mentioned
- The Flash memory access time is adjusted to the fHCLK frequency:
- 0 wait state and Prefetch OFF from 0 to 24 MHz
- 1 wait state and Prefetch ON above 24 MHz
- When the peripherals are enabled fPCLK = fHCLK

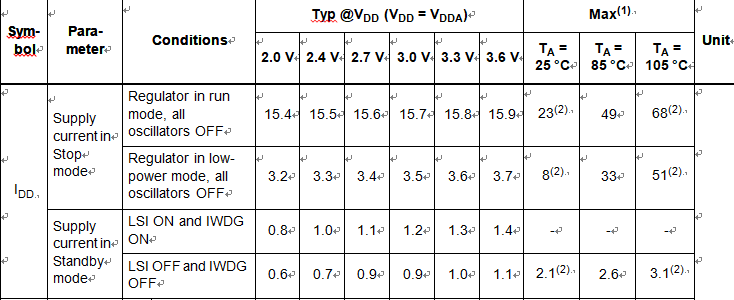

The parameters given in to below Table are derived from tests performed under ambient temperature and supply voltage conditions summarized in Table 24: General operating conditions.
ARM STM32F071R8 mikrodenetleyici flash bellek korumasını kırın ve mcu stm32f071rb çipinden gömülü onaltılık dosyayı okuyun, daha sonra mikroişlemcinin kurcalama direnci sistemi stm32f071rb kilidi açılacaktır;
