Attack MCU PIC12F675 Binary

This document contains device specific information for the PIC12F675. Additional information may be found in the PIC® Mid-Range Reference Manual (DS33023) from Attack MCU PIC12F675 Binary, which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site.

The Reference Manual should be considered a complementary document to this Data  Sheet, and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

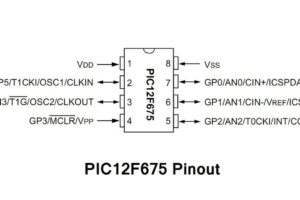

The PIC12F629 and PIC12F675 devices are covered by this Data Sheet. They are identical, except the PIC12F675 has a 10-bit A/D converter. They come in 8-pin PDIP, SOIC, MLF-S and DFN packages. Figure 1-1 shows a block diagram of the PIC12F675 devices. Below Table shows the pinout description.

Attack MCU PIC12F675 Binary

The PIC12F675 devices have a 13-bit program counter capable of addressing an 8K x 14 program memory space. Only the first 1K x 14 (0000h-03FFh) for the PIC12F629/675 devices is physically implemented. Accessing a location above these boundaries will cause a wrap-around within the first 1K x 14 space from UNLOCK MICROCONTROLLER.

The Reset vector is at 0000h and the interrupt vector is at 0004h.

The data memory (see Figure 2-2) is partitioned into two banks, which contain the General Purpose locations of each bank. Register locations 20h-5Fh are General Purpose Registers, implemented as static RAM and are mapped across both banks. All other RAM is unimplemented and returns ‘0’ when read. RP0 (STATUS<5>) is the bank select bit.

Registers and the Special Function Registers. The Special Function Registers are located in the first 32 locations of each bank. Register locations 20h-5Fh are General Purpose Registers, implemented as static RAM and are mapped across both banks. All other RAM is unimplemented and returns ‘0’ when read. RP0 (STATUS<5>) is the bank select bit.
