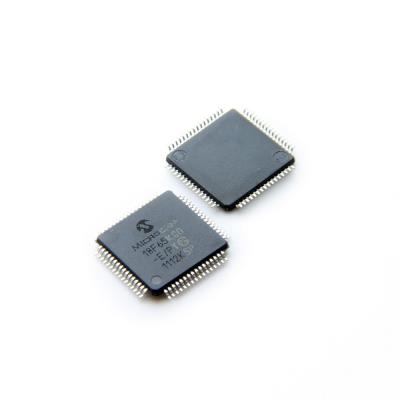

Microchip MCU PIC18F65K80 Heximal Recovery is a process to unlock microcontroller pic18f65k80 secured memory and then readout the embedded firmware from mcu;

The PIC18F66K80 family of devices includes an internal oscillator block which generates two different clock signals. Either clock can be used as the microcontroller’s clock source, which may eliminate the need for an external oscillator circuit on the OSC1 and/or OSC2 pins.

The Internal oscillator consists of three blocks, depending on the frequency of operation. They are HF-INTOSC, MF-INTOSC and LF-INTOSC.

Microchip MCU PIC18F65K80 dados binários ou recuperação de programa heximal é um processo para desbloquear microcontrolador seguro PIC18F65K80 memória flash e memória eeprom fusível protetor bit, ler firmware incorporado, como o código-fonte do microprocessador criptografado PIC18F65K80;

In HF-INTOSC mode, the internal oscillator can provide a frequency ranging from 31 KHz to 16 MHz, with the postscaler deciding the selected frequency (IRCF<2:0>).

The INTSRC bit (OSCTUNE<7>) and MFIOSEL bit

(OSCCON2<0>) also decide which INTOSC provides the lower frequency (500 kHz to 31 KHz). For the HF-INTOSC to provide these frequencies, INTSRC = 1 and MFIOSEL = 0.

Микроконтроллер микросхемы PIC18F65K80 двоичных данных или восстановления шестнадцатеричной программы – это процесс разблокировки защищенного микроконтроллера PIC18F65K80 флэш-памяти и защитного бита памяти EEPROM, считывания встроенной прошивки, такой как исходный код зашифрованного микропроцессора PIC18F65K80;

In HF-INTOSC, the postscaler (IRCF<2:0>) provides the frequency range of 31 kHz to 16 MHz. If HF-INTOSC is used with the PLL, the input frequency to the PLL should be 4  MHz  to  16  MHz  (IRCF<2:0> = 111, 110 or 101) by breaking microchip pic18f25k80 flash memory.

For MF-INTOSC mode to provide a frequency range of 500 kHz to 31 kHz, INTSRC = 1 and MFIOSEL = 1.

The postscaler (IRCF<2:0>), in this mode, provides the

frequency range of 31 kHz to 500 kHz.

The LF-INTOSC can provide only 31 kHz if INTSRC = 0.

میکروچیپ MCU PIC18F65K80 داده های باینری یا بازیابی برنامه هگزیمال یک فرایند برای باز کردن میکروکنترلر امن PIC18F65K80 حافظه فلش و حافظه eeprom محافظ فیوز بیت، بازخوانی سیستم عامل تعبیه شده مانند کد منبع از ریزپردازنده رمزگذاری شده PIC18F65K80 است؛

The LF-INTOSC provides 31 kHz and is enabled if it is selected as the device clock source. The mode is enabled automatically when any of the following are enabled:

• Power-up Timer (PWRT)
• Fail-Safe Clock Monitor (FSCM)
• Watchdog Timer (WDT)
• Two-Speed Start-up

These features are discussed in greater detail in

Section 28.0 “Special Features of the CPU”.

The clock source frequency (HF-INTOSC, MF-INTOSC or LF-INTOSC direct) is selected by configuring the IRCFx bits of the OSCCON register, as well the INTSRC and MFIOSEL bits. The default frequency on device Resets is 8 MHz.
